Hierarchical clustering

February 25 2020
Hierarchical clustering

Introduction


Workflow

1. Data normalization

## Import lbraries
import numpy as np
import pandas as pd
from sklearn import datasets

## Import data
iris = datasets.load_iris()

df = pd.DataFrame(data= np.c_[iris['data'], iris['target']],
                     columns= iris['feature_names'] + ['target'])
sepal length (cm) sepal width (cm) petal length (cm) petal width (cm) target
5.1 3.5 1.4 0.2 0
4.9 3.0 1.4 0.2 0
4.7 3.2 1.3 0.2 0
4.6 3.1 1.5 0.2 0
5.0 3.6 1.4 0.2 0
5.4 3.9 1.7 0.4 0
4.6 3.4 1.4 0.3 0
5.0 3.4 1.5 0.2 0
4.4 2.9 1.4 0.2 0
4.9 3.1 1.5 0.1 0
def normalize_col(col):
  return (col-col.min())/(col.max()-col.min())

features_df = df.drop('target', axis=1)

normalized_data = features_df.apply(lambda x: normalize_col(x))
sepal length (cm) sepal width (cm) petal length (cm) petal width (cm)
0.2222222 0.6250000 0.0677966 0.0416667
0.1666667 0.4166667 0.0677966 0.0416667
0.1111111 0.5000000 0.0508475 0.0416667
0.0833333 0.4583333 0.0847458 0.0416667
0.1944444 0.6666667 0.0677966 0.0416667
0.3055556 0.7916667 0.1186441 0.1250000
0.0833333 0.5833333 0.0677966 0.0833333
0.1944444 0.5833333 0.0847458 0.0416667
0.0277778 0.3750000 0.0677966 0.0416667
0.1666667 0.4583333 0.0847458 0.0000000

2. Find optimal distance/dissimilarity metric

scikit-learn supports {“ward”, “complete”, “average”, “single”}

scikit-learn supports [‘cityblock’, ‘cosine’, ‘euclidean’, ‘l1’, ‘l2’, ‘manhattan’].

linkage_list = ['single', 'complete', 'average', 'weighted', 'centroid', 'median', 'ward']

affinity_list = ['cityblock', 'cosine', 'euclidean', 'l1', 'l2', 'manhattan', 'braycurtis', 'canberra', 'chebyshev',
                 'correlation', 'dice', 'hamming', 'jaccard', 'kulsinski', 'mahalanobis', 'minkowski', 'rogerstanimoto',
                 'russellrao', 'seuclidean', 'sokalmichener', 'sokalsneath', 'sqeuclidean', 'yule']

Cophenetic correlation is commonly used:

## Import libraries
from scipy.cluster.hierarchy import dendrogram, linkage
from scipy.cluster.hierarchy import cophenet
from scipy.spatial.distance import pdist

## Calculate Cophenetic coefficient for every possible combinations
affinity_col = []
linkage_col = []
coph_coef = []

for a in affinity_list:
  for l in linkage_list:

    ## Create column of affinity metric
    affinity_col.append(a)

    ## Create column of linkage metric
    linkage_col.append(l)

    ## Create column of cophenetic coefficient
    try:
      Z = linkage(normalized_data, method=l, metric=a)

      c, coph_dists = cophenet(Z, pdist(normalized_data, a))

      coph_coef.append(c)
    except:
      coph_coef.append(None)

coph_coef_df = pd.DataFrame(list(zip(affinity_col, linkage_col, coph_coef)),
                            columns =['Affinity', 'Linkage', 'Coef'])
Affinity Linkage Coef
kulsinski average 0.9981284
sokalsneath average 0.9978761
kulsinski single 0.9969603
russellrao average 0.9961201
russellrao single 0.9960512
dice average 0.9918238
sokalsneath single 0.9897271
kulsinski weighted 0.9877838
sokalsneath weighted 0.9875723
russellrao weighted 0.9782891

Since scikit-learn supports a smaller subset of affinity metrics, let’s see which ones:

sklearn_affinity = ['cityblock', 'cosine', 'euclidean', 'l1', 'l2', 'manhattan']

coph_coef_df[coph_coef_df['Affinity'].isin(sklearn_affinity)].sort_values(by='Coef', ascending=False)
Affinity Linkage Coef
9 cosine average 0.9389399
8 cosine complete 0.9383165
10 cosine weighted 0.9373907
7 cosine single 0.9367462
18 euclidean centroid 0.8655197
16 euclidean average 0.8650491
3 cityblock weighted 0.8630825
2 cityblock average 0.8619296
20 euclidean ward 0.8584916
0 cityblock single 0.8456212


3. Hierarchical clustering

from scipy.cluster.hierarchy import fcluster
import matplotlib.pyplot as plt

Z = linkage(normalized_data, method='average', metric='kulsinski')

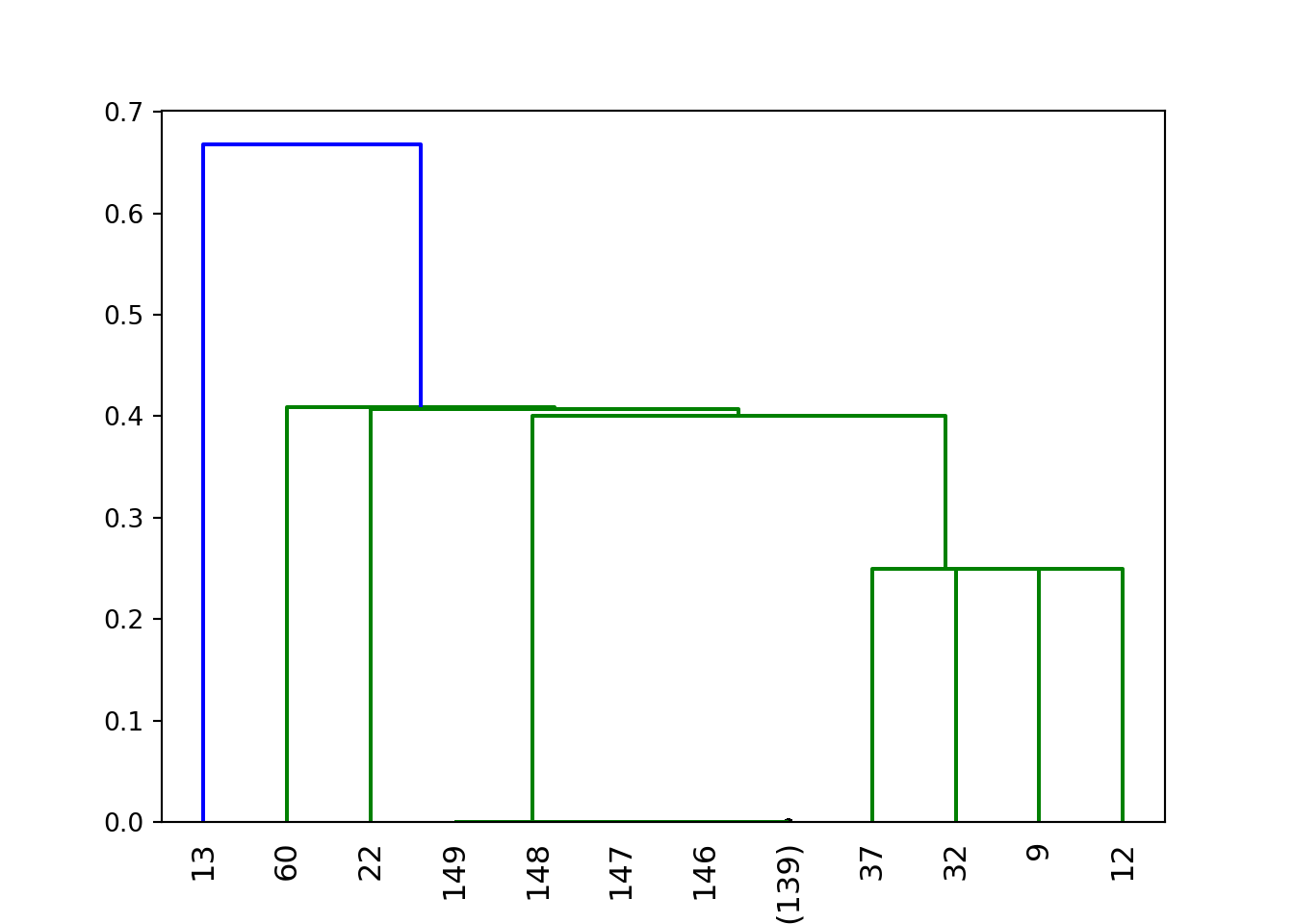

dendrogram(
    Z,
    truncate_mode='lastp',  # show only the last p merged clusters
    p=12,  # show only the last p merged clusters
    show_leaf_counts=True,
    leaf_rotation=90.,
    leaf_font_size=12.,
    show_contracted=True,  # to get a distribution impression in truncated branches
)
## {'icoord': [[65.0, 65.0, 75.0, 75.0], [55.0, 55.0, 70.0, 70.0], [45.0, 45.0, 62.5, 62.5], [35.0, 35.0, 53.75, 53.75], [105.0, 105.0, 115.0, 115.0], [95.0, 95.0, 110.0, 110.0], [85.0, 85.0, 102.5, 102.5], [44.375, 44.375, 93.75, 93.75], [25.0, 25.0, 69.0625, 69.0625], [15.0, 15.0, 47.03125, 47.03125], [5.0, 5.0, 31.015625, 31.015625]], 'dcoord': [[0.0, 0.0, 0.0, 0.0], [0.0, 0.0, 0.0, 0.0], [0.0, 0.0, 0.0, 0.0], [0.0, 0.0, 0.0, 0.0], [0.0, 0.25, 0.25, 0.0], [0.0, 0.25, 0.25, 0.25], [0.0, 0.25, 0.25, 0.25], [0.0, 0.3999999999999989, 0.3999999999999989, 0.25], [0.0, 0.40725623582766335, 0.40725623582766335, 0.3999999999999989], [0.0, 0.40900900900900794, 0.40900900900900794, 0.40725623582766335], [0.0, 0.6674336848833502, 0.6674336848833502, 0.40900900900900794]], 'ivl': ['13', '60', '22', '149', '148', '147', '146', '(139)', '37', '32', '9', '12'], 'leaves': [13, 60, 22, 149, 148, 147, 146, 287, 37, 32, 9, 12], 'color_list': ['g', 'g', 'g', 'g', 'g', 'g', 'g', 'g', 'g', 'g', 'b']}
plt.show()

max_d = 50

df['cluster'] = fcluster(Z, max_d, criterion='distance')

df.groupby('cluster')['target'].value_counts()
## cluster  target
## 1        0.0       50
##          1.0       50
##          2.0       50
## Name: target, dtype: int64
## Import libraries
from sklearn.cluster import AgglomerativeClustering

## Hierarchical clustering
groups = AgglomerativeClustering(n_clusters=3, affinity='cosine', linkage='average')

df['sk_cluster'] = groups.fit_predict(normalized_data)

df.groupby('sk_cluster')['target'].value_counts()
## sk_cluster  target
## 0           1.0       50
##             2.0       50
## 1           0.0       49
## 2           0.0        1
## Name: target, dtype: int64

dist() supports: “euclidean”, “maximum”, “manhattan”, “canberra”, “binary” or “minkowski”

hclust() supports: “ward.D”, “ward.D2”, “single”, “complete”, “average” (= UPGMA), “mcquitty” (= WPGMA), “median” (= WPGMC) or “centroid” (= UPGMC).

library(data.table)

distance_list = list()
linkage_list = list()
coph_list = list()

for (d in c("euclidean", "maximum", "manhattan", "canberra", "binary", "minkowski")) {
  for (l in c("ward.D", "ward.D2", "single", "complete", "average", "mcquitty", "median","centroid")) {
    distance_list <- c(distance_list, d)

    linkage_list <- c(linkage_list, l)

    distances <- dist(py$normalized_data, method=d)
    hcl <- hclust(distances, method=l)

    d2 <- cophenetic(hcl)
    #print(cor(distances, d2))

    coph_list <- c(coph_list, cor(distances, d2))
  }
}

res_df = NULL

res_df = do.call(rbind, Map(data.frame, Distance=distance_list, Linkage=linkage_list, Coph=coph_list)) %>% arrange(desc(Coph))
res_df  %>% kable()
Distance Linkage Coph
binary average 0.9954216
binary centroid 0.9953446
binary median 0.9915078
binary mcquitty 0.9778637
binary single 0.9775996
canberra average 0.9482878
canberra centroid 0.9444549
canberra mcquitty 0.9418244
canberra single 0.9376605
binary ward.D2 0.9225534
canberra median 0.9187911
canberra ward.D2 0.9122727
canberra complete 0.9039845
canberra ward.D 0.8950139
binary ward.D 0.8887405
manhattan centroid 0.8667134
euclidean average 0.8650491
minkowski average 0.8650491
manhattan mcquitty 0.8630825
euclidean centroid 0.8629415
minkowski centroid 0.8629415
manhattan average 0.8619296
binary complete 0.8611782
manhattan ward.D2 0.8607663
euclidean ward.D2 0.8584916
minkowski ward.D2 0.8584916
manhattan median 0.8507094
manhattan ward.D 0.8487168
euclidean ward.D 0.8461945
minkowski ward.D 0.8461945
manhattan single 0.8456212
euclidean median 0.8450047
minkowski median 0.8450047
euclidean single 0.8441740
minkowski single 0.8441740
maximum average 0.8391428
maximum mcquitty 0.8325664
maximum centroid 0.8292697
euclidean mcquitty 0.8273731
minkowski mcquitty 0.8273731
maximum ward.D2 0.8254128
maximum median 0.8063678
maximum single 0.8044841
maximum ward.D 0.8007950
maximum complete 0.7717549
manhattan complete 0.7302247
euclidean complete 0.6783791
minkowski complete 0.6783791

Agglomerative clustering:

library(cluster)
library(factoextra)


d <- dist(py$normalized_data, method='binary')      ## Calculates distance

hcl <- hclust(d, method='average')  ## Hierchical clustering

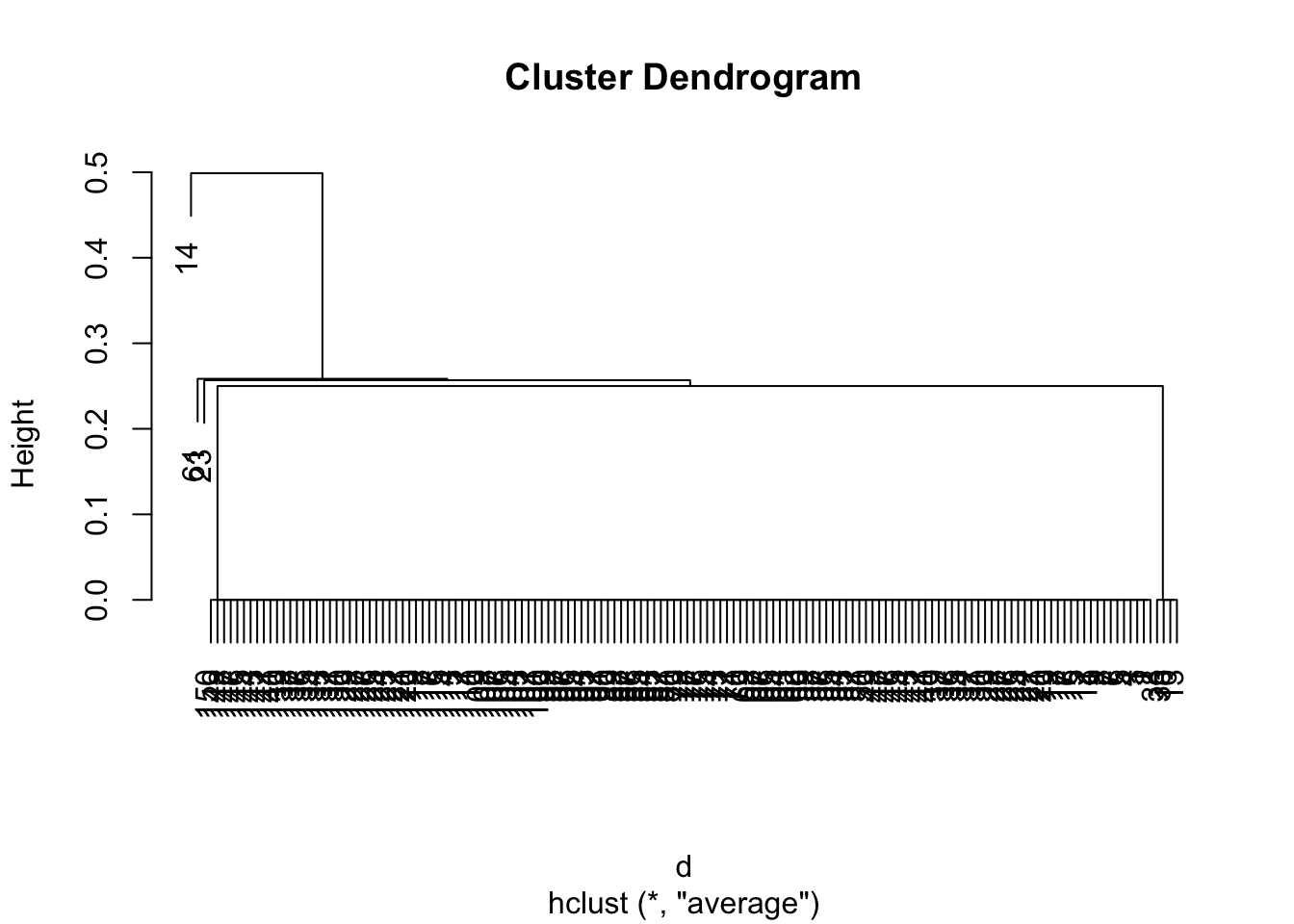

plot(hcl)

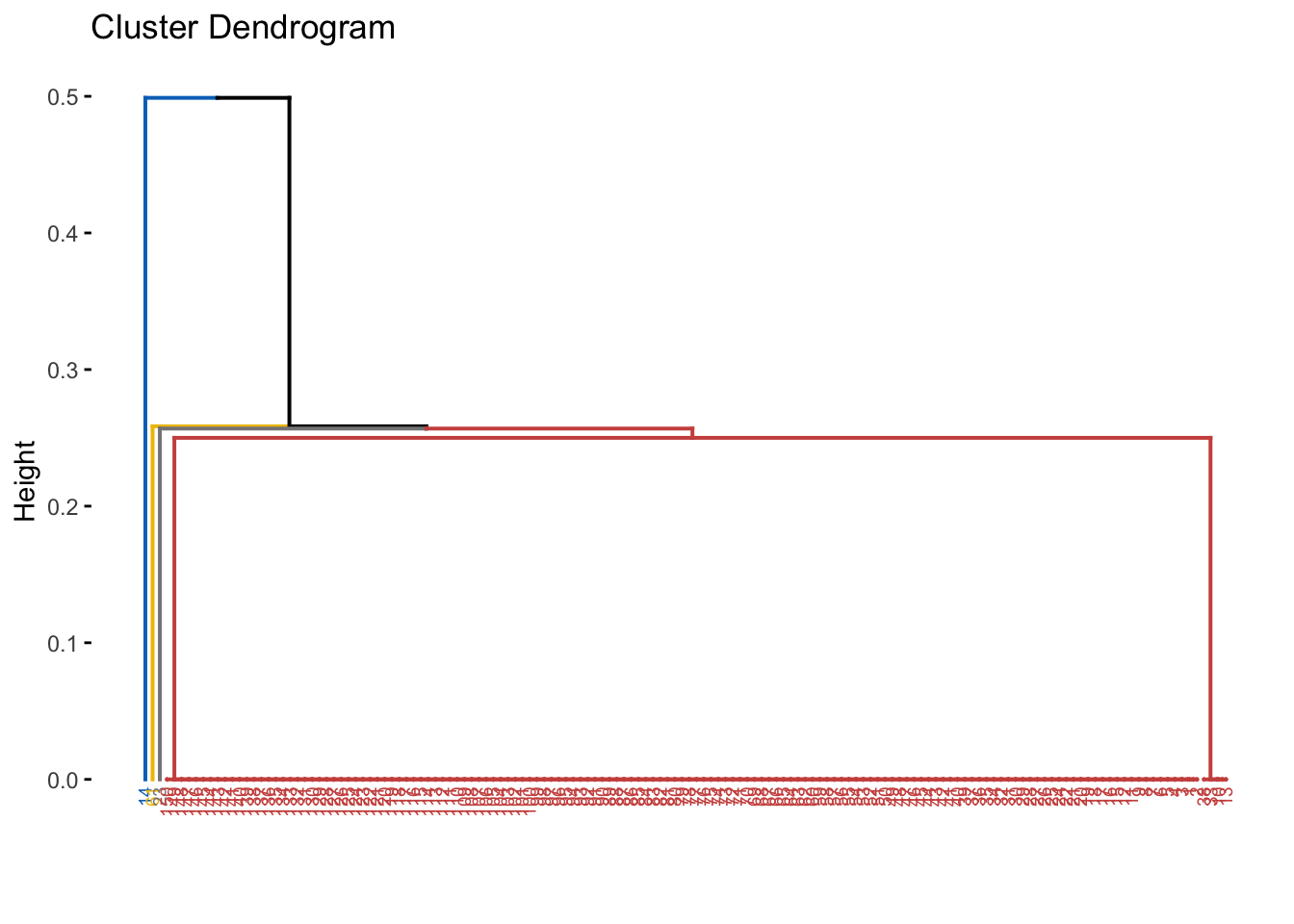

fviz_dend(hcl, cex = 0.5,
          k = 4,
          palette = "jco") # Color palette

sub_grp <- cutree(hcl, k = 4)


py$df %>%
  mutate(cluster = sub_grp) %>%
  group_by(cluster, target)  %>%
  summarise(Freq = n())
## # A tibble: 6 x 3
## # Groups:   cluster [4]
##   cluster target  Freq
##     <int>  <dbl> <int>
## 1       1      0    48
## 2       1      1    49
## 3       1      2    50
## 4       2      0     1
## 5       3      0     1
## 6       4      1     1

Divisive clustering

## Import library
library(factoextra)

## Clustering
res.diana <- diana(py$normalized_data, stand = TRUE)

## Plot the dendrogram

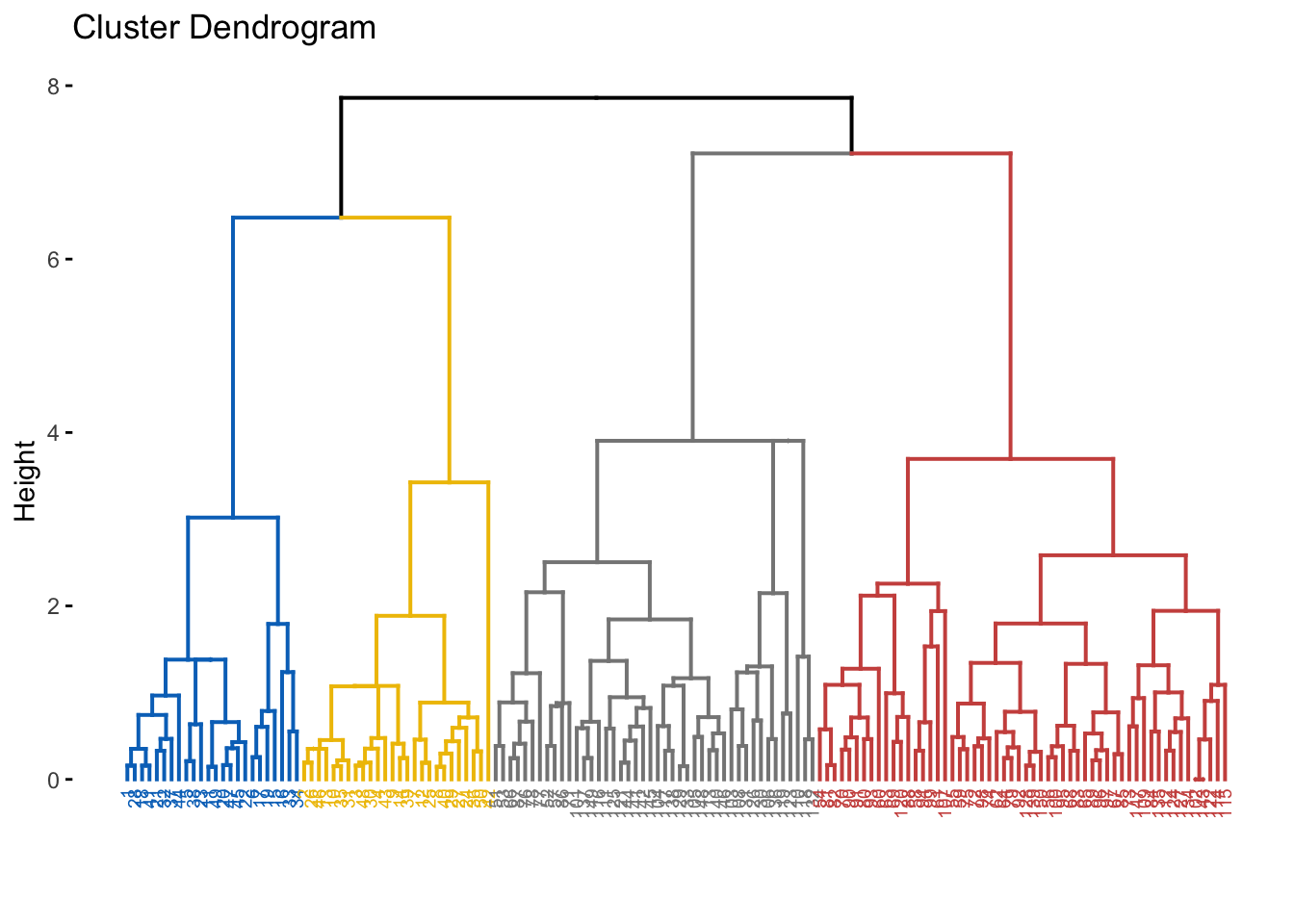

fviz_dend(res.diana, cex = 0.5,
          k = 4, # Cut in four groups
          palette = "jco") # Color palette

4. Validate clusterings
